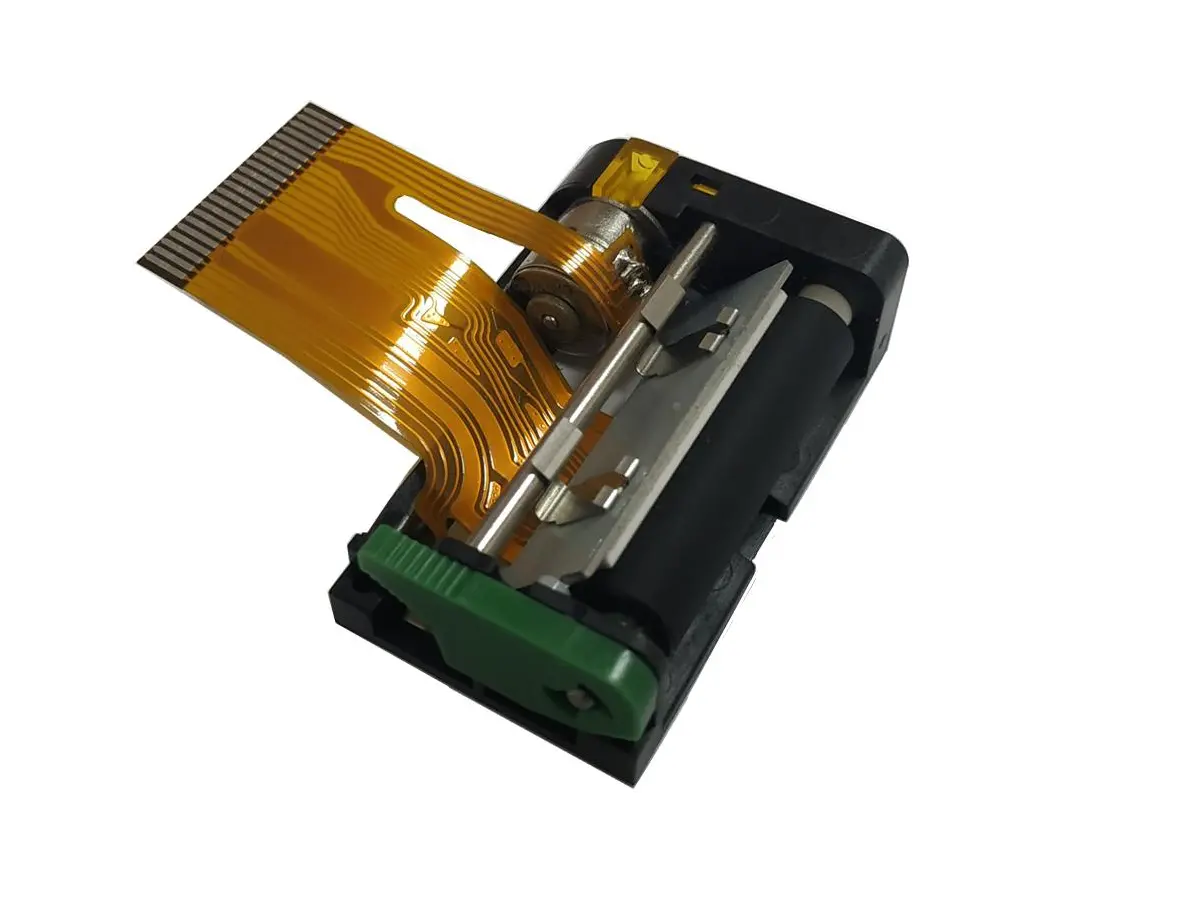

1 inch thermal printer mechanism

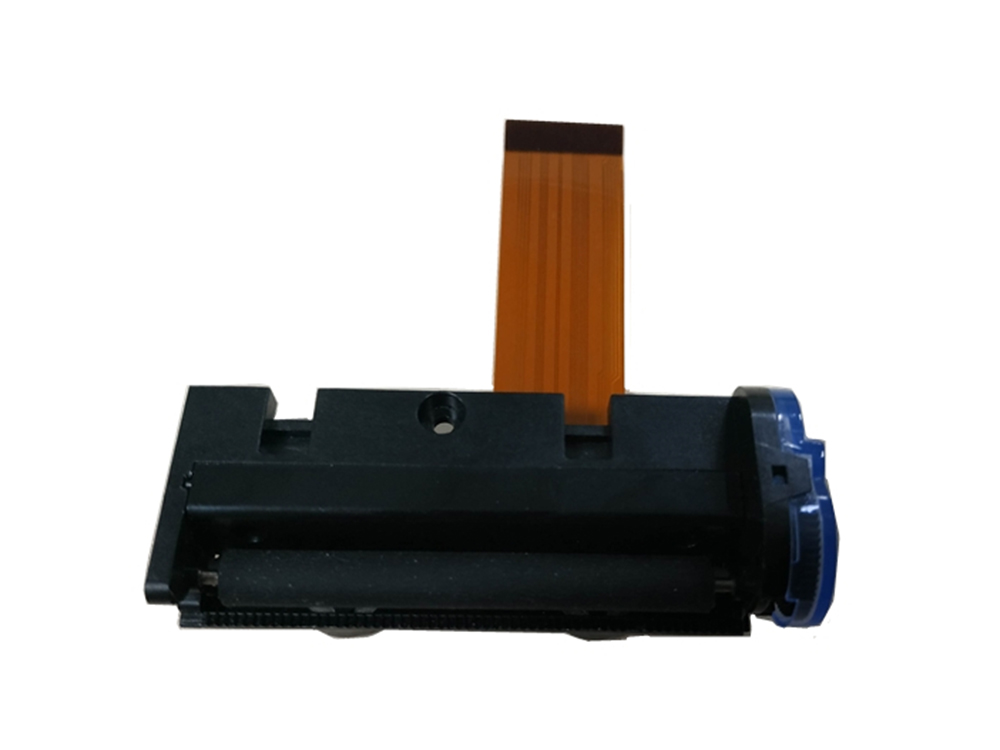

2 inch thermal printer mechanism

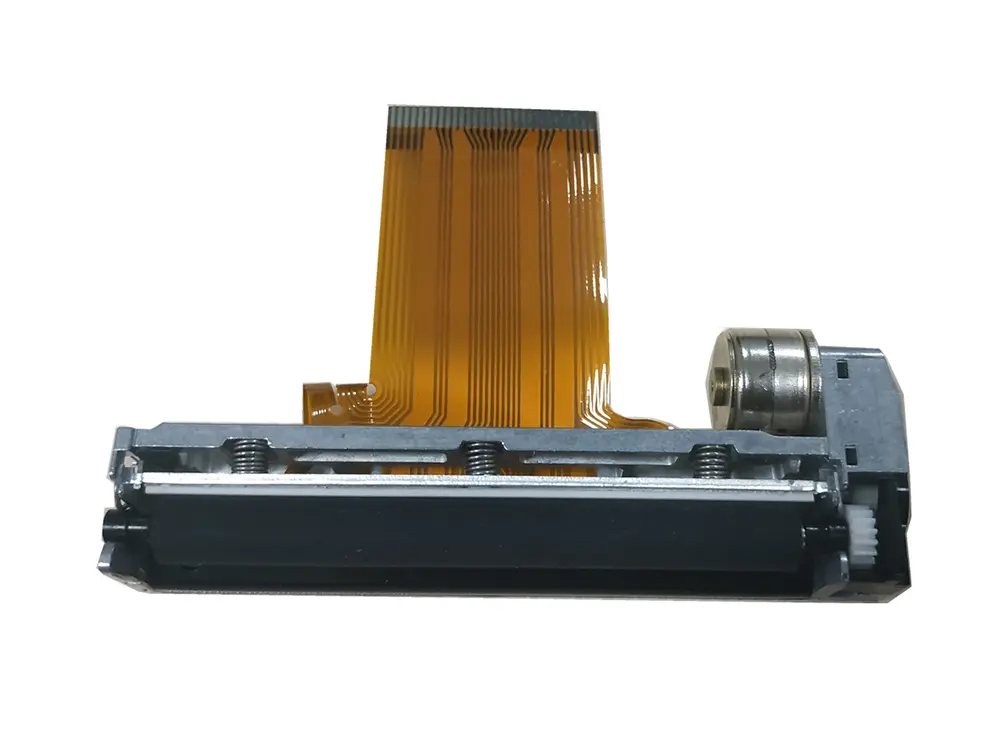

3 inch thermal printer mechanism
4 inch thermal printer mechanism
8 inch thermal printer mechanism

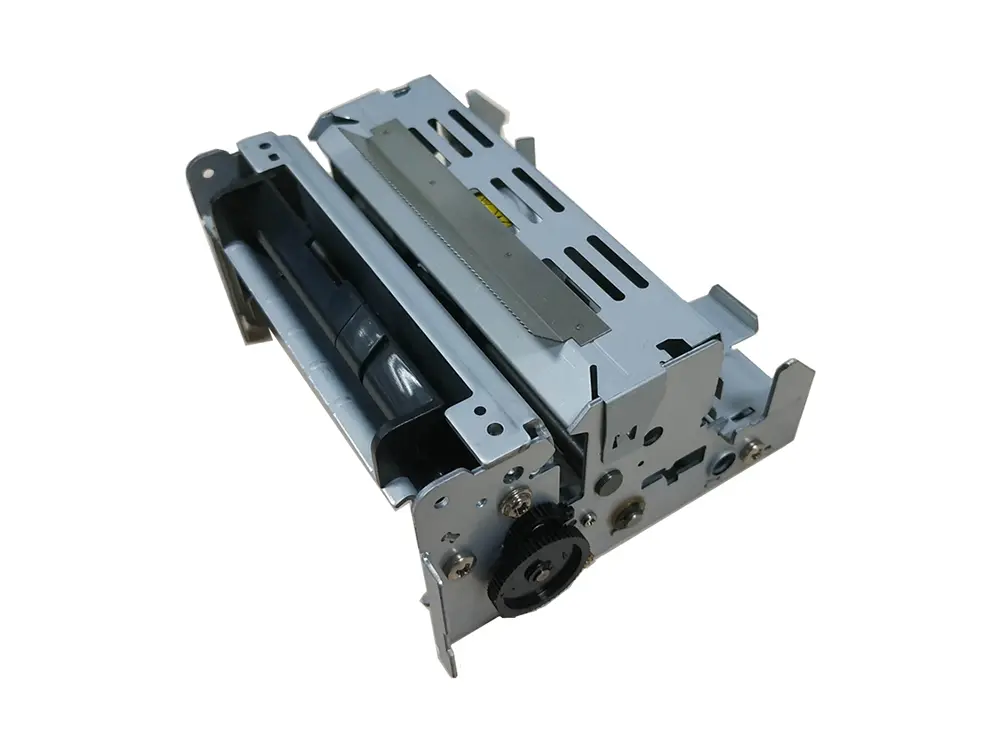

dot matrix printer mechanism

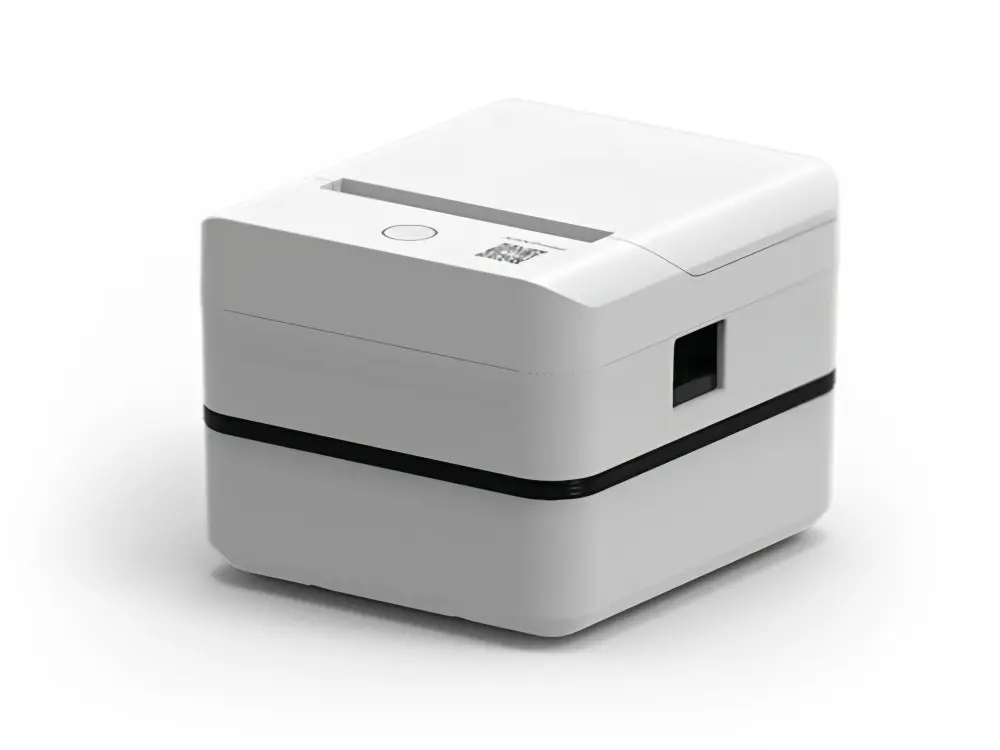

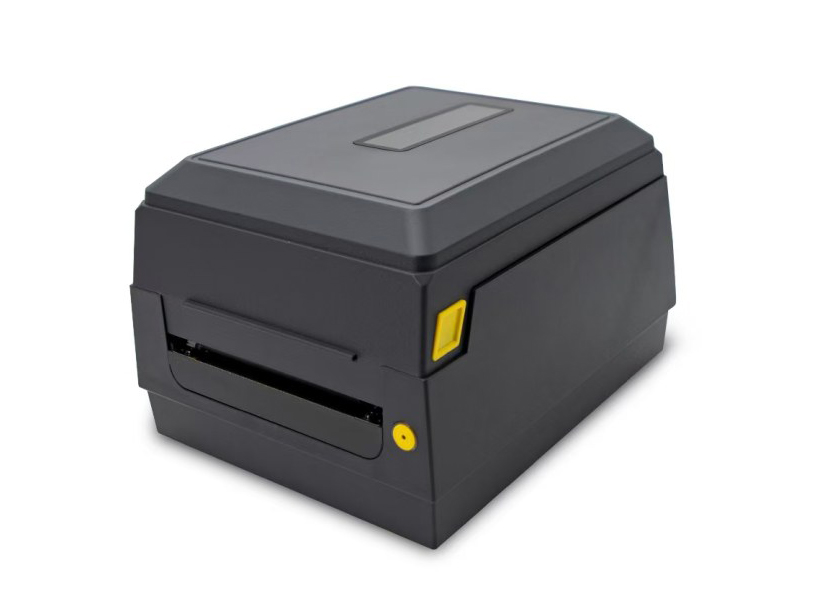

Label Printer
Receipt Printer

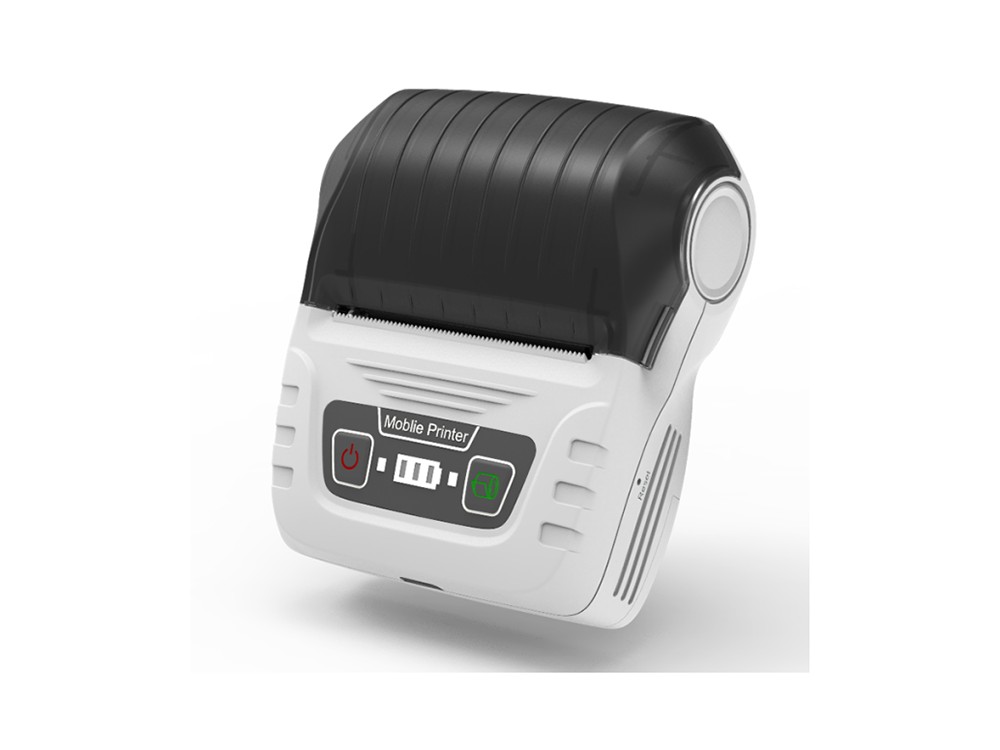

Mobile Printer

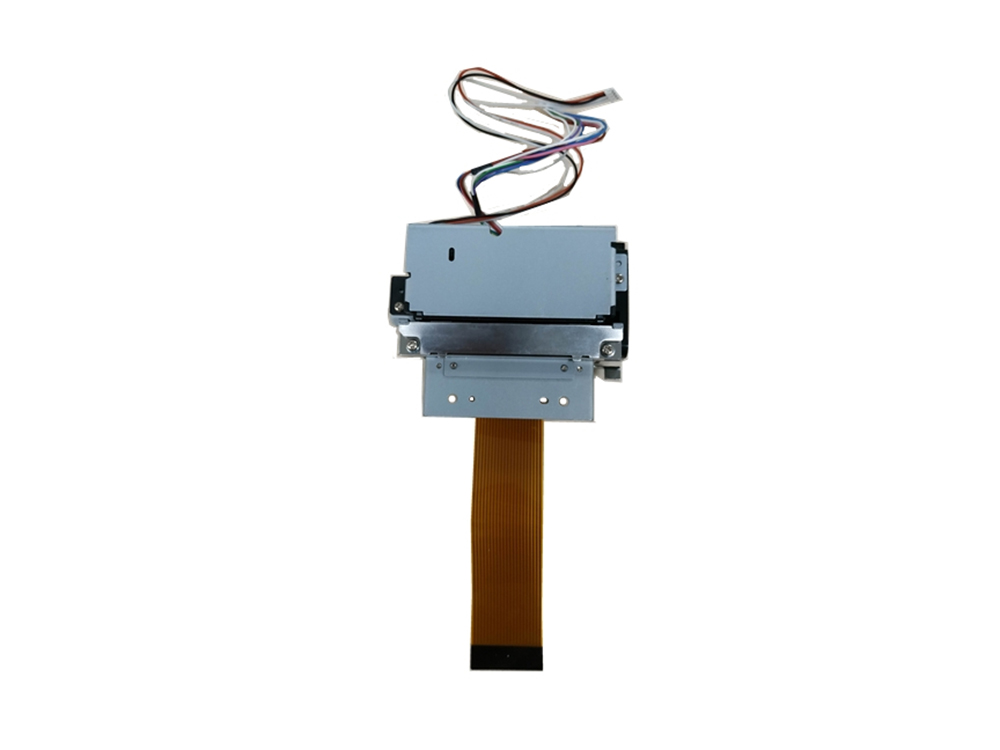

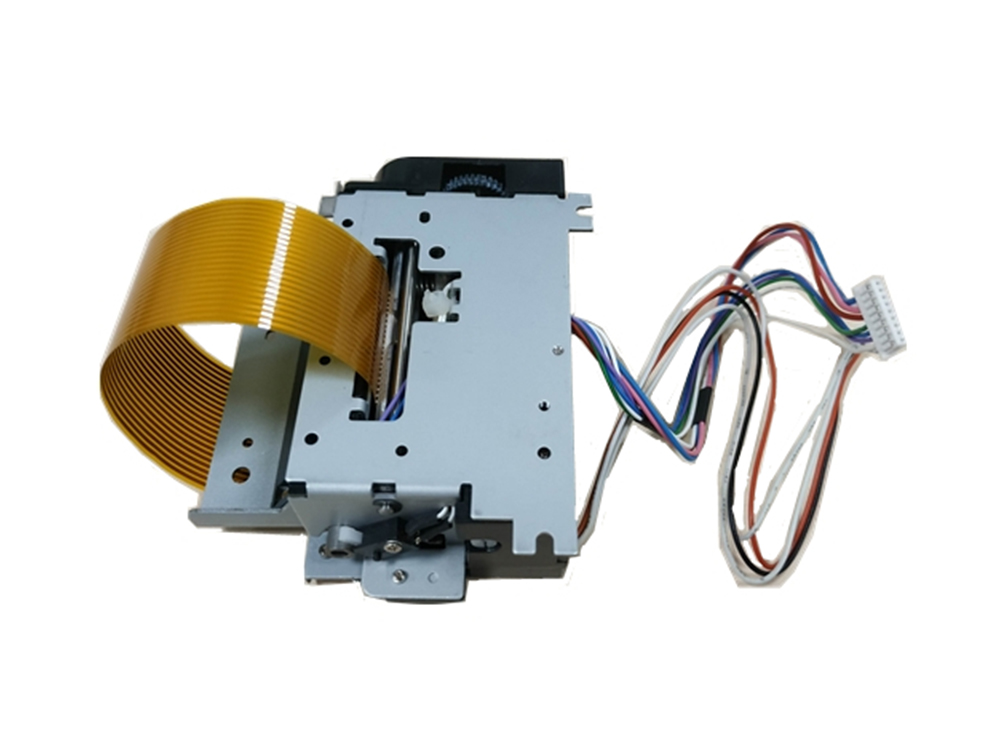

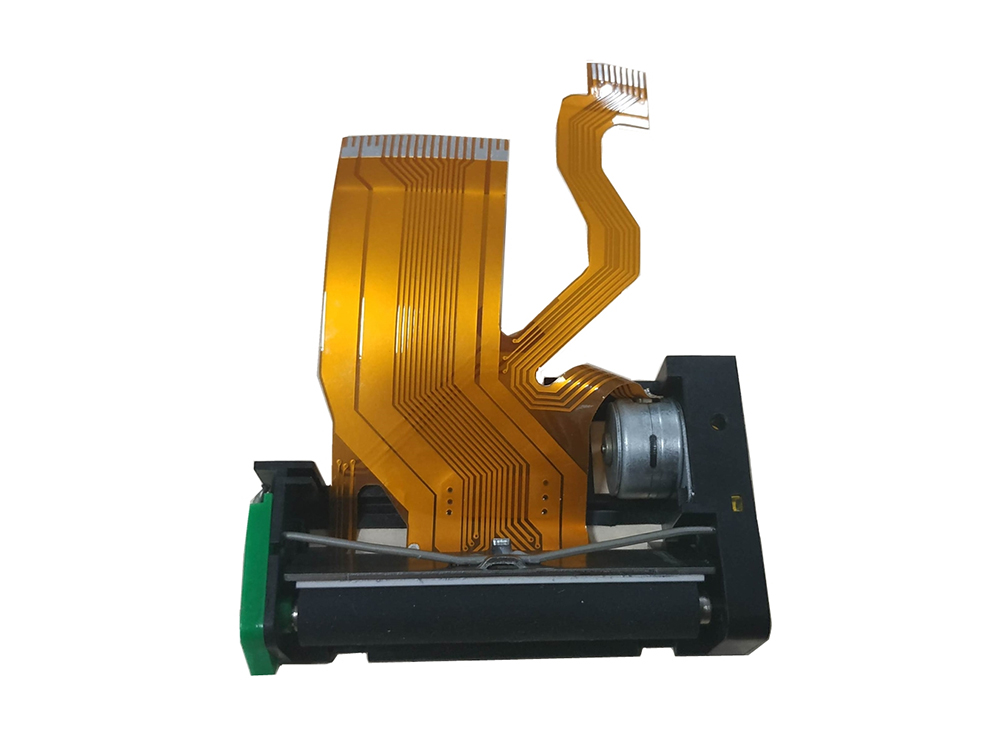

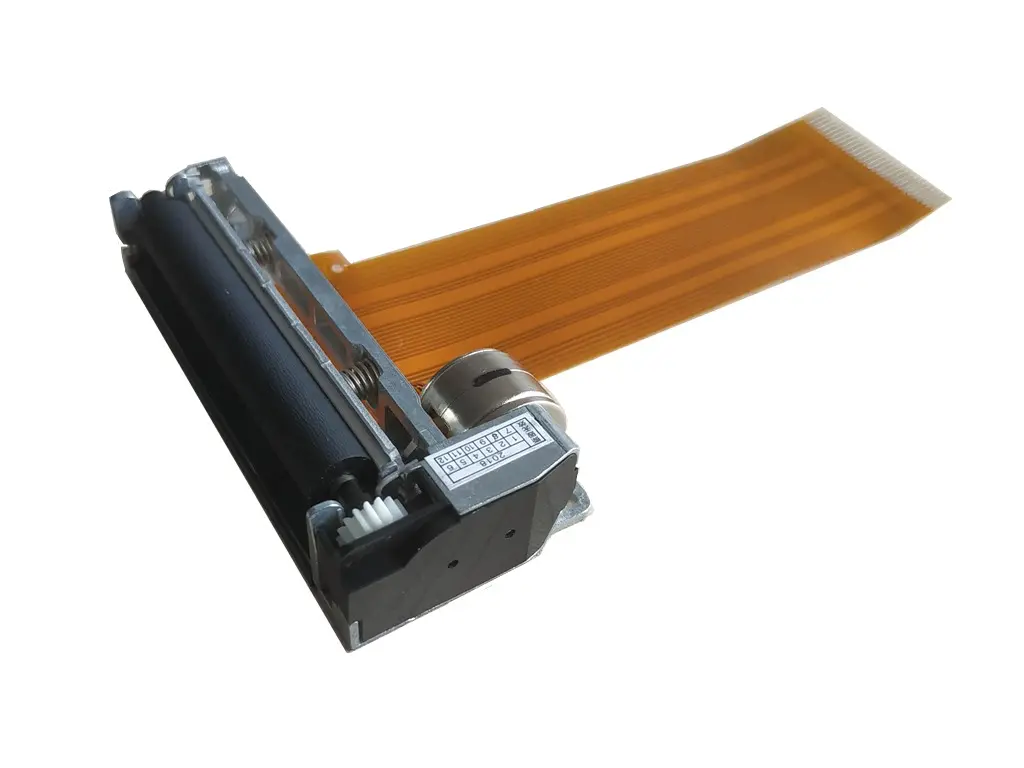

TP220C-ST thermal printer mechanism series
Description
In industries such as POS systems, medical devices, and mobile equipment, the need for a low-voltage, compact, and high-performance print mechanism is paramount.
We, Opos Printer, as one of the earliest domestic printer mechanism manufacturers, our print mechanisms not only deliver exceptional reliability and functionality but are also designed to minimize power consumption. This makes them the ideal solution for applications where efficiency, portability, and long battery life are essential.
Our Thermal technologies provide a wide selection of paper width, print speed and durability are available to meet any demand.
Features
◆ Easy loading paper
◆ Small size
◆ Light weight
◆ Fast print speed（max print speed 90mm/s）
◆ Wide working voltage
◆ High DPI（8 dots/mm,203DPI）
◆ Long printing life（>50km,1 million cutter life）
◆ Low noise
Specification
Printing method |
Thermal dot printing |
Number of dots |
384dots/line |
Resolution |
8dots/mm |
Valid Printing width |
48mm |
Paper width（mm） |
58mm |
Paper feed pitch |
0.125mm |
Dimension(mm) |
87.7*75*30.4 |
Head temperature |
By thermistor |
Paper end sensor |
By photo interrupter |
For printer head（V） |
4.2～9.5 |
For logic（V） |
2.7～5.25 |
Auto-cutter motor voltage（V） |
12±10% |
Paper end sensor voltage（V） |
5±0.25 |
Print life |
50km |
Auto-cutter life |
1 million times |
Operating temperature（℃） |
0～50（no condensation） |
Operating humidity（RH） |
20％～85％（no condensation） |
Storage temperature (℃) |
-25～70（no condensation |
Storage humidity（RH） |
5％～95％（no condensation） |
Thermal head specifications
Number of Heat Elements |
384dots |
Dot density |
0.125mm |
Dot size |
0.11mm x 0.10mm |
Paper feed pitch |
0.0625mm |
Valid printing width |
48mm |
Average Resistance Value |
176Ω±4% |
Operating voltage |
4.2～9.5V |
Pulse life |
100 million pusle |
Mechanical life |
50km |
Life test conditions |
25 ° C, the heating time ratio is not more than 12.5%. |
Application
Automotive
Calculators
Data terminal devices
EFT POS
Fiscal printers
Hand held terminals
Measuring instruments and analysers
Medical equipment
Portable printers and terminals
Taxi meters
Express
TP220C-ST: The High-Performance Thermal Printer Mechanism for Versatile Applications
Discover the TP220C-ST, a thermal printer mechanism series that combines compact design with powerful performance, perfect for a wide range of applications. With its small size and wide working voltage, the TP220C-ST is engineered to deliver high efficiency and reliability, making it an excellent choice for environments where space is limited but performance is crucial.
The TP220C-ST's standout feature is its fast print speed, capable of reaching up to 90mm/s, ensuring that your printing needs are met with speed and accuracy. Its high DPI of 203 provides clear and detailed prints, while the long printing life of over 50km and 1 million cutter life ensure that the TP220C-ST is built to last in the most demanding conditions.
The unique movement design of the TP220C-ST makes paper loading effortless, reducing the time spent on maintenance and increasing the overall efficiency of your operations. Its lightweight and compact dimensions of 87.77530.4mm make it an ideal fit for a variety of devices, from handheld terminals to data terminal devices.
The TP220C-ST's thermal head specifications are impressive, with 384 heat elements and a dot density of 0.125mm, ensuring high-quality prints. The operating voltage range of 4.2 to 9.5V allows for flexibility in power supply, making it suitable for various environments.
The TP220C-ST is designed to operate in a wide range of temperatures and humidity levels, making it suitable for both indoor and outdoor use. Its storage temperature range of -25 to 70°C and humidity levels of 5% to 95% RH ensure that the printer mechanism remains in top condition even when not in use.
The versatility of the TP220C-ST is evident in its wide range of applications, from automotive and medical equipment to portable printers and EFT POS systems. Its compatibility with various devices makes it a valuable asset in any industry that requires reliable and efficient printing solutions.
Choose the TP220C-ST thermal printer mechanism series for your next project and experience the difference that advanced technology and thoughtful design can make. With its combination of speed, precision, and durability, the TP220C-ST is set to redefine what you expect from a thermal printer mechanism.
