M20 Small Portable Mobile Thermal Receipt Printer Label Maker

Thermal Printer

Item No.

M20

Name

2 inch Thermal Labal Printer

Printer Parameters

Printer Method

Line Thermal Printing

Printing Speed

M20-S(50mm/s),M20-P(80mm/s)

Max. Resolution

203DPI(8dots/mm)

Pitch

0.125mm

Print Width

48mm

Printer Media

Type

Thermal receipt roll paper

Paper Width

W≤58mm

Paper roll outer diameter

D≤40mm

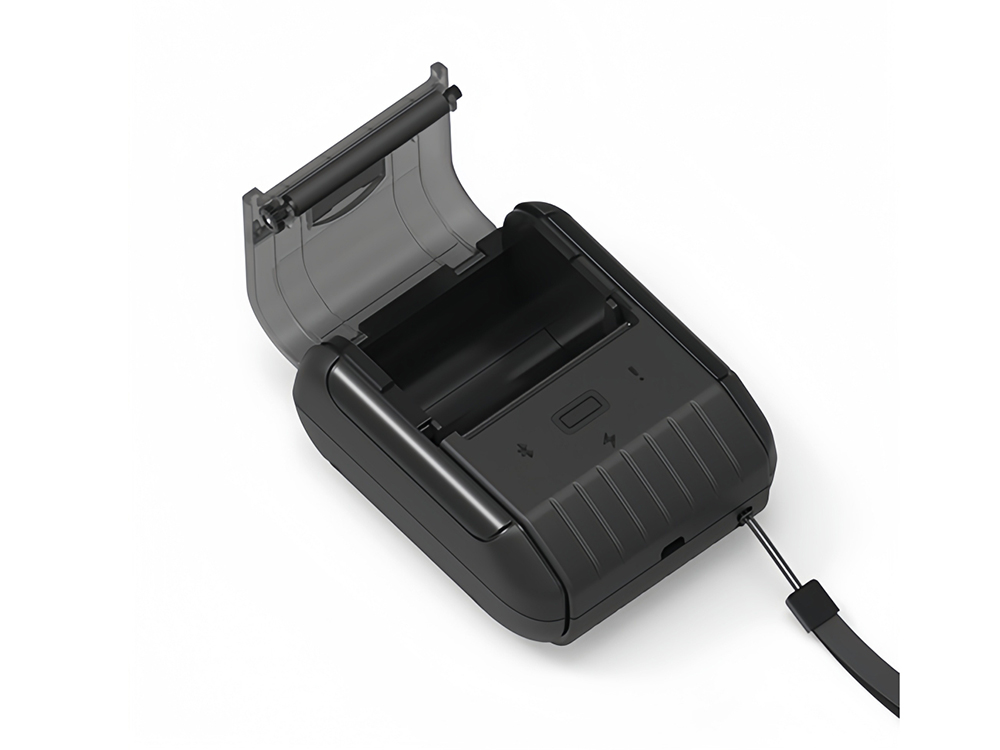

Paper loading method

Clamshell loading, easy loading

Paper output method

Front output, thermal side outward

Paper cutting method

Handware paper tearing knife, manual tearing off

Physical Properties

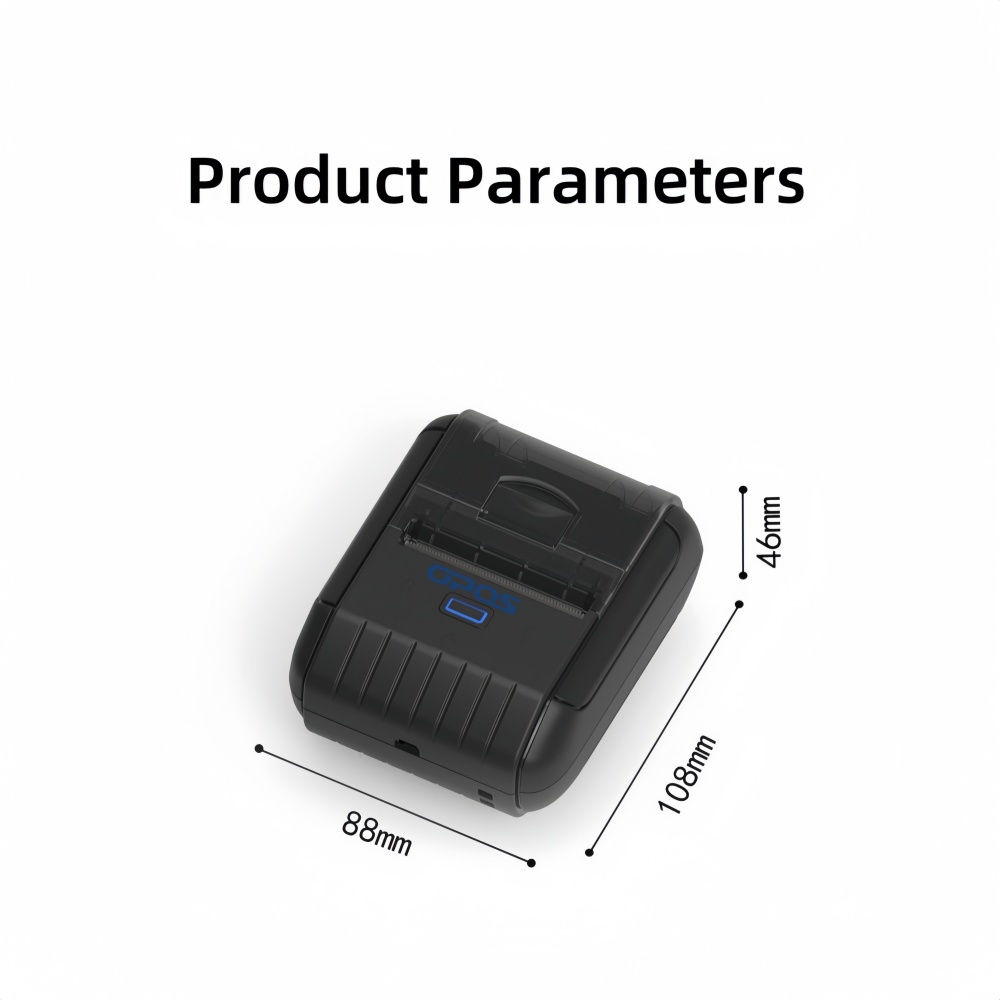

Dimensions

108.5*88*46.5mm

Package Size

177*105*54mm

Weight

M20-S(205g)， M20-P(255g),including battery,excluding roll paper

Color

Navy Blue, Brown, Matte Black

Material

ABS, PC

Interact

Wireless Interface

Bluetooth 4.2 BLE supports Android IOS

Wired Communication Interface

M20-S:Mini USB, M20-P:Integrated USB

Programming Command

M20-S:ESC/POS, M20-P:ESC/POS/CPCL

Label Detection

Single-side black mark detection, positioning detection

Power Supply

Adapter

Standard configuration: input 100-240AC 0.5A,output DC-5V 1A

Battery Capacity

M20-S:3.7V/2000mAh, M20-P:7.4V/2000mAh (lithium-ion battery)

Charging Time

M20-S:4hours(standby 160h), M20-P:3hours(standby 200h),
