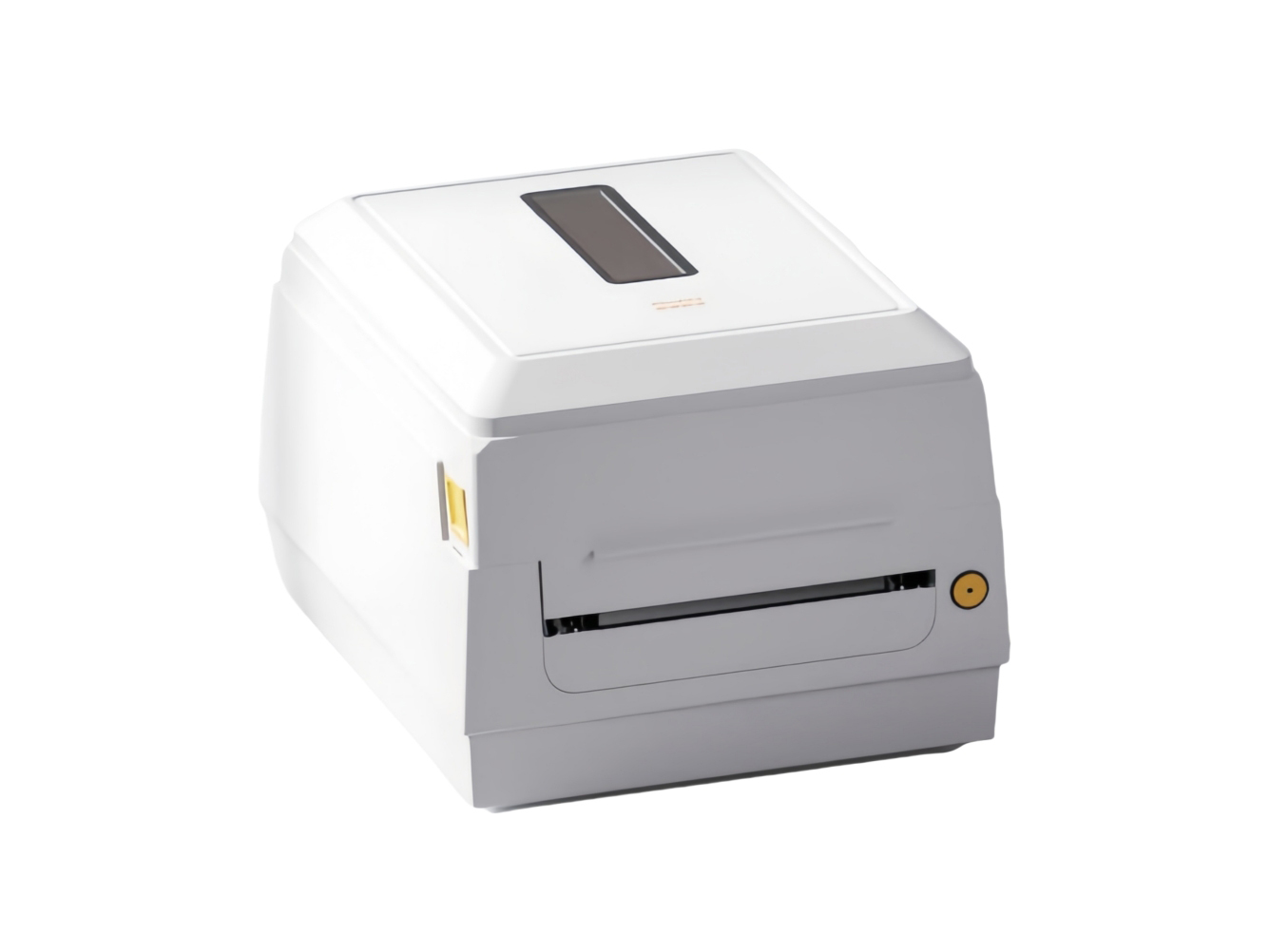

4 inch Thermal Heat Transfer Printer

This 4-inch thermal transfer printer offers both printing methods, allowing you to select the best option based on your application requirements.

1.Size: 273*220*177mm

2.Max Paper width: 110mm

3.Print width:108mm

4.The max printing speed:150mm/s

5.Ribbon Length: 300mm

6.Ribbon Width: 110mm

7.Interface:USB, Enternet, Serial Port, Bluetooth(optional)

8.OEM & ODM customized service.

    Description

    This 4 inch Desktop Thermal Transfer Printers are compact, easy to use, and designed to deliver the durability your business needs for low- to mid-volume printing.

    With a range of DPI options and interfaces, and printers available at various price points, you don’t have to sacrifice performance for savings.

    Whether you need to print barcode labels, receipts, wristbands, or RFID tags, there’s a desktop printer that’s perfect for the task.

    2 Printing Model: Direct thermal & thermal transfer printing

    Direct Thermal Printing

    Direct thermal printing uses heat to print on thermal paper, which is chemically treated to darken when exposed to heat.

    A thermal printhead applies heat directly to the thermal paper to produce the image, text, or barcode.

    Thermal Transfer Printing

    Thermal transfer printing uses a heat-sensitive ribbon (typically wax, resin, or a combination of both) that is heated by the printhead. The heat melts the ink from the ribbon and transfers it onto the surface of the label material.

    This method allows printing on a wider range of materials (such as paper, plastic, fabric, and synthetic materials) beyond just thermal paper.

    Both technologies are ideal for printing barcodes, text, and images. However, understanding the differences between them will help you choose the best printer for your specific needs.

    This 4-inch thermal tranfer printer supports both printing methods, giving you the flexibility to choose the optimal option based on your application requirements.

    T49

    Key Features

    1)High-Quality Printing: This Opos thermal transfer printer delivers a high resolution of 203dpi, 300dpi version ensuring sharp, clear prints for a variety of labels, including shipping labels, clothing tags, and metal ribbon jewelry stickers.

    2)Efficient and Fast: With a print speed of 150mm/s, this printer efficiently handles high-volume printing, making it perfect for businesses with high printing needs which helps to streamline business operations and improve productivity.

    3)Versatile Compatibility: Supporting multiple printing commands such as TSPL, EPL, and ZPL, this printer is fully compatible with various systems, including bartener printing software, you can also choose our developed printing software-Openlabel.

    4)Versatile Labeling: With a paper width range of 25.4-118mm, this printer allows for the creation of custom-sized labels,barcodes, QR codes, receipts, and tickets. Ideal for businesses with unique packaging requirements.

    5)Reliable Support: Enjoy peace of mind with a 1-year warranty and comprehensive after-sales support, including returns and replacements, ensuring that your business operations run smoothly, even during heavy use.

    These features make this 4x6 thermal transfer printer a great option for small businesses looking to simplify and improve their labeling and shipping tasks.

    Package

    1 thermal printer,

    1 adapter,

    1 USB cable,

    1 power cord,

    1 manual,

    Media Shaft&Baffle Plate X2,

    Ribbon Shaftx2,

    Ribbon Core

    Specification

    Thermal Transfer Printer

    Item No.

    T49

    Name

    4Inch/108mm  Thermal  Transfer Printer

    Printer Parameters

    Printer Method

    Line Thermal Printing& Thermal transfer

    Printing Speed

    150mm/s

    100mm/s

    Max. Resolution

    203DPI

    300DPI

    Print Width

    108mm

    107mm

    Printer Media

    Type

    Continuous paper, folding paper, thermal Label Paper,Blackmark Paper

    Paper Width

    W≤110mm

    Paper roll outer diameter

    D≤127

    Paper loading method

    Clamshell loading, easy loading

    Paper output method

    Top output, thermal side outward

    Paper cutting method

    Handware paper tearing knife, manual tearing off

    Ribbon Width

    110mm

    Ribbon Length

    300m

    Physical Properties

    Dimensions

    273*220*177mm

    Package Size

    380*280*290mm

    Weight

    Net weight:2000g/Gross Weigh:3200g

    Color

    White, Dark Grey

    Material

    ABS, PC

    Interact

    Wireless Interface

    Bluetooth(optional)

    Wired Communication Interface

    USB-B, Ethernet, Serial Port,

    Programming Command

    TSPL,EPL,ZPL

    Power Supply

    Adapter

    Standard configuration: input 100-240V AC, 50-60Hz, output 24V/2A 48W

    Application Scenarios

    Our Label Thermal Printer are designed to meet the needs of various industries and sectors.

    1. Courier & LogisticsThermal printers play a crucial role in the courier and logistics industries, enabling fast and accurate printing of shipping labels, tracking numbers, and barcodes. They ensure smooth operations, reducing delays and errors in package handling and delivery.

    2. OfficeIn office environments, our thermal printers offer a compact, cost-effective solution for printing invoices, receipts, and other important documents.

    3. CommodityFor retail and e-commerce businesses, thermal printers are perfect for printing product labels, price tags, and barcodes.
    This ensures accurate tracking and inventory management, improving efficiency across the entire supply chain.

    4. PackageWhether for shipping, warehousing, or inventory management, our thermal printers are used to print package labels that include product details, shipping information, and handling instructions, facilitating smooth and efficient package processing.

    5. CableIn the cable industry, thermal printing technology is employed to print cable identification labels, helping manufacturers and suppliers easily track and organize products. These labels are durable, legible, and resistant to environmental factors like moisture and abrasion.

    And other variety application scenarios.
